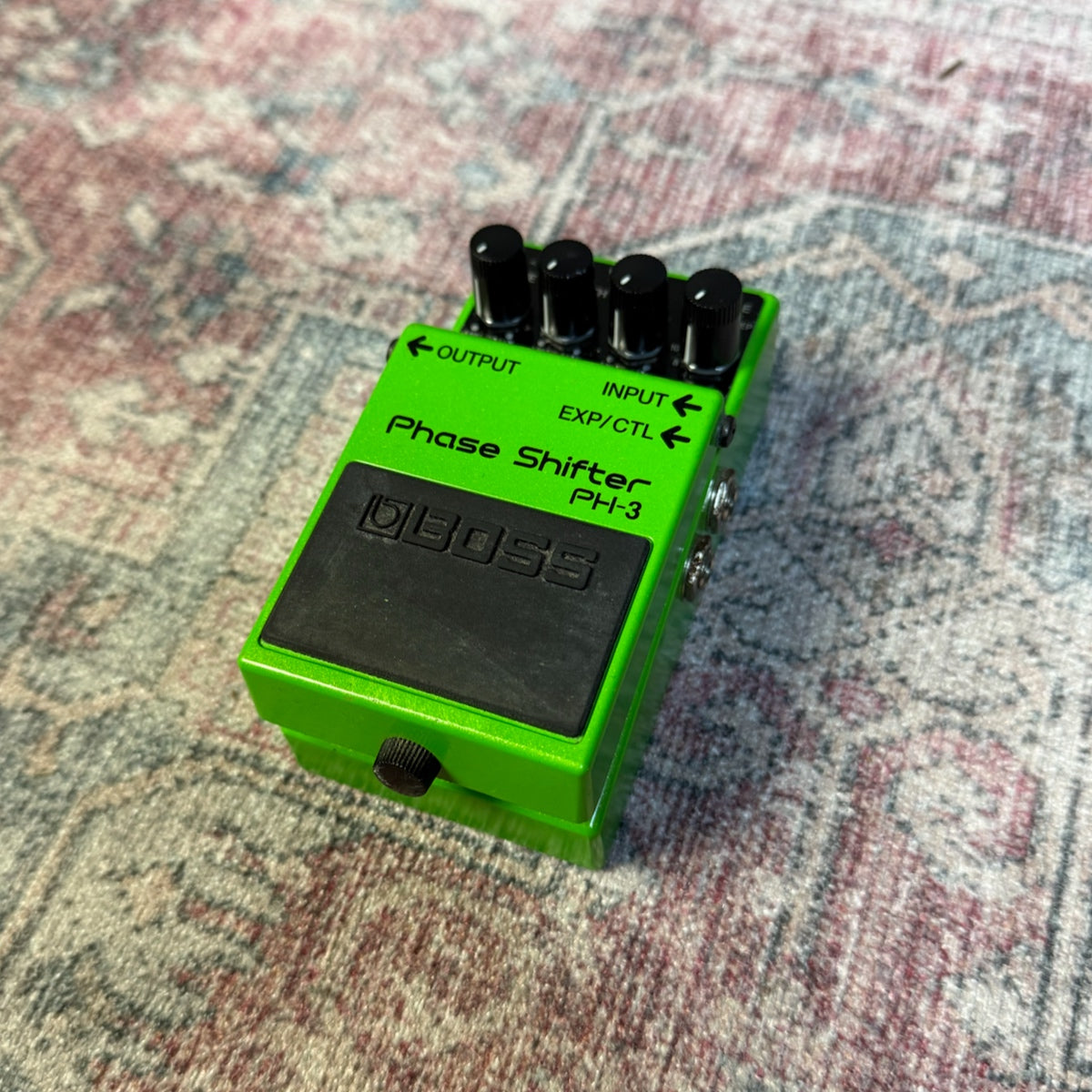

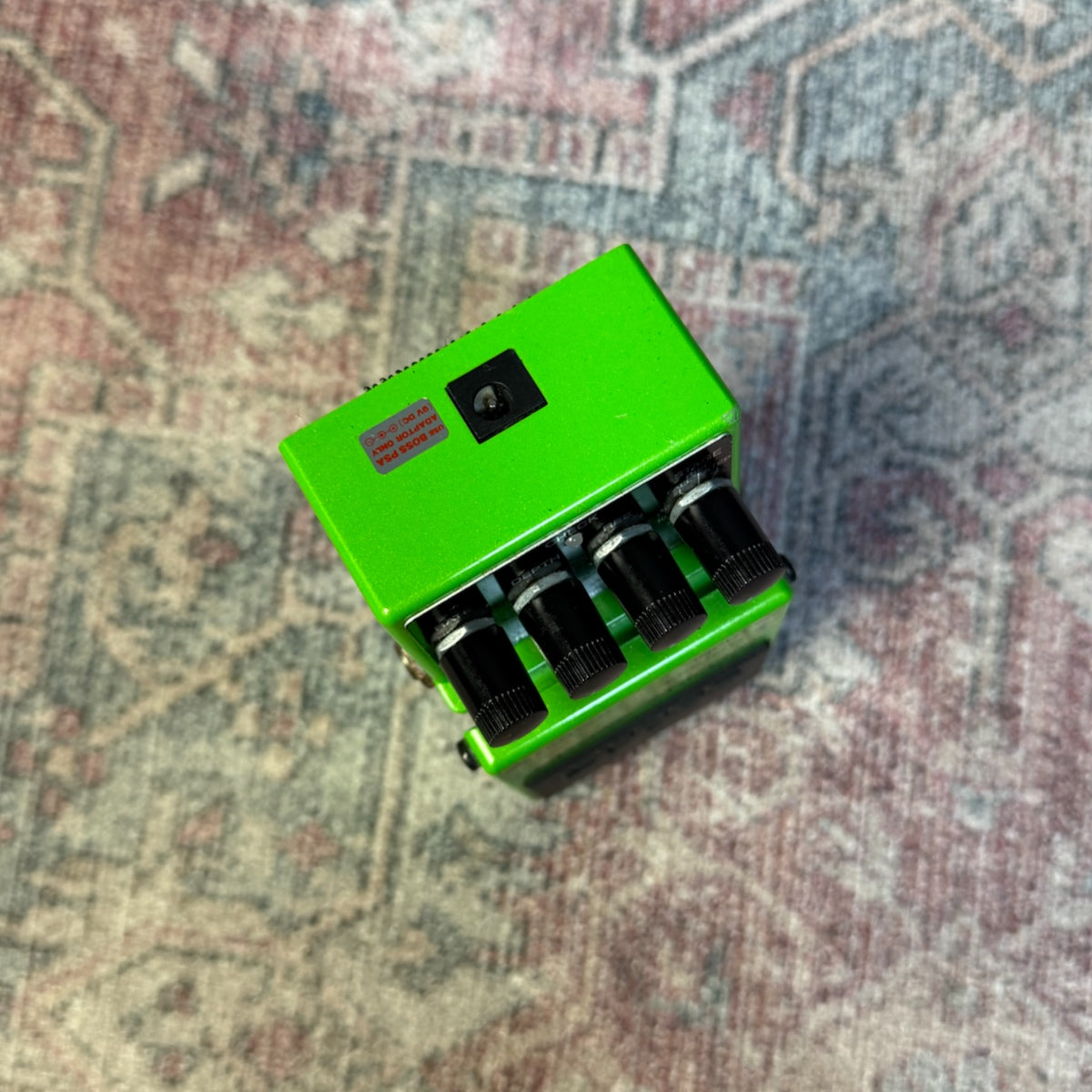

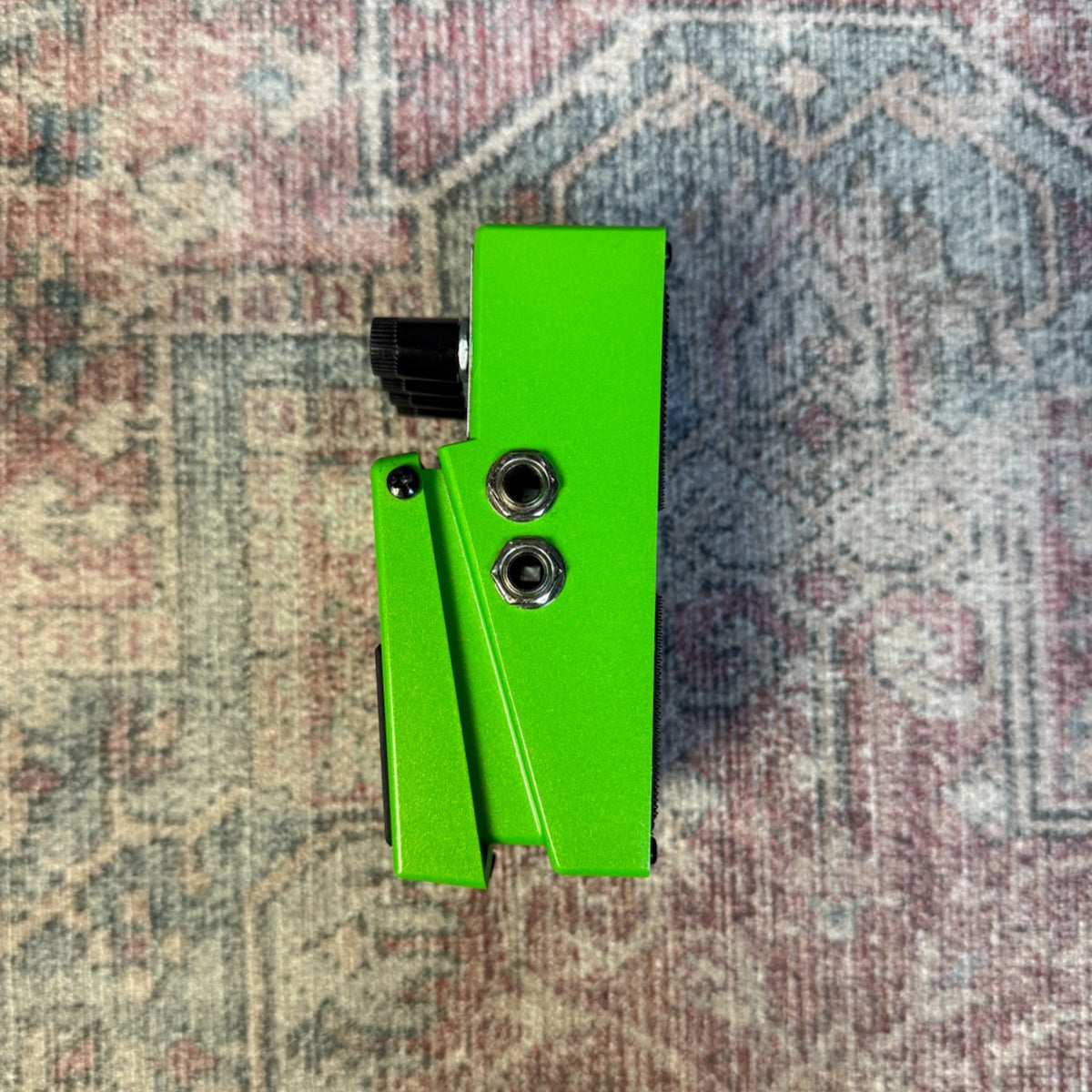

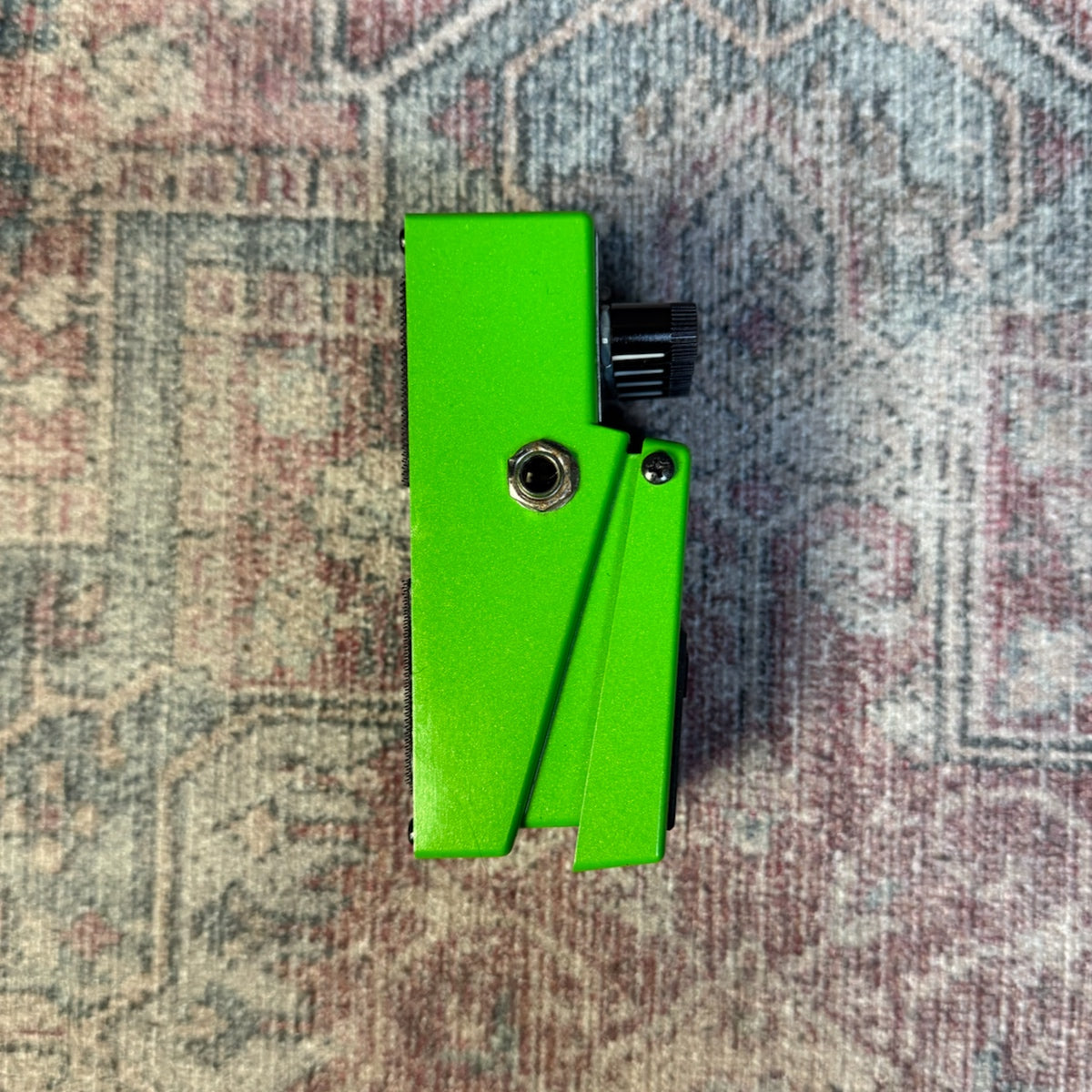

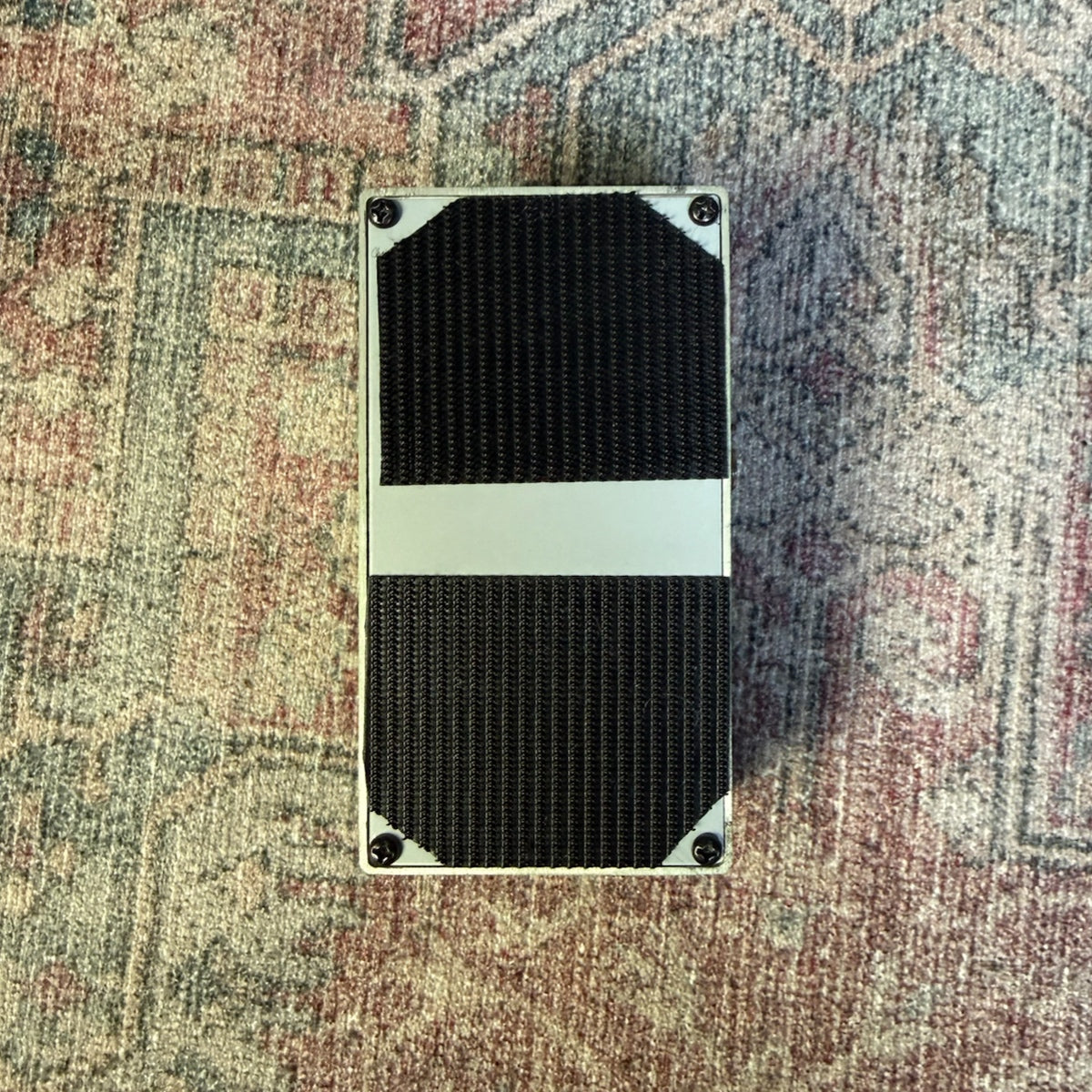

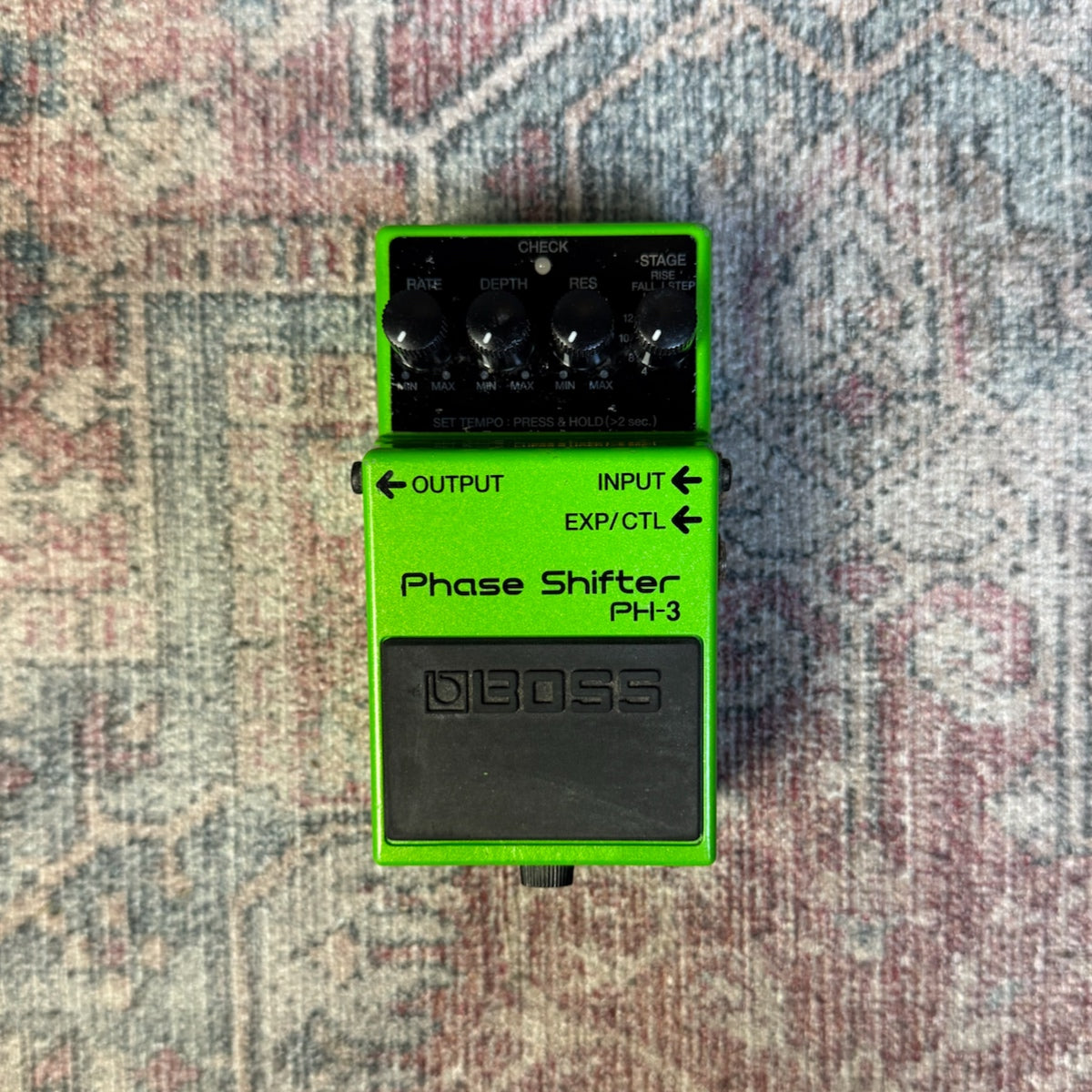

Boss PH-3 Phase Shifter Pedal
Couldn't load pickup availability
Preowned and in excellent condition!
Boss's Phase Shifter provides you with a varied range of vintage and modern phaser effects, including Rise and Fall modes for a unique, unidirectional phaser. The PH-3 is also capable of delivering classic multi-stage phasers with selectable ranges, however. Synchronising the effect is easy - just press the pedal repeatedly, and an optional expression pedal can be used to control Rate, Filter and Tempo parameters in real-time.
Sound characteristics of the PH-3
The PH-3 is equipped with four simple controls. A Rate knob determines the speed of the filter changes, while a Depth knob controls the effect level. The effect resonance is controlled by a Res knob, and a Stage knob allows you to select a phaser type. You can choose between 4, 8, 10 or 12-stage phasers and Fall, Rise and Step phase types.
Specs:
- type: phaser
- rate: determines the speed of the effect
- depth: determines the strength of the effect
- res: determines the resonance of the effect
- stage: determines the phaser type
- on/off switch by means of a foot pedal
- indicator: battery check
- input: input/EXP/CTL; 1/4-inch jack, input impedance 1 MOhm
- output: 1/4-inch jack, output impedance: 10 kOhms
- powered by 9V battery (6F22/9V) or optional PSA AC adapter
- power consumption: 50 mA
- dimensions: 73 x 129 x 59 mm (WxDxH)
- weight: 400 grams
